TM40VC Travel Final Drives For Excavators Doosan DH220-7 DH225-7 176 / 95 cc / rev Displacement

Perfect quality and good service

—— Mirek

Professional supplier and excellent service

—— Fahad

I'm Online Chat Now

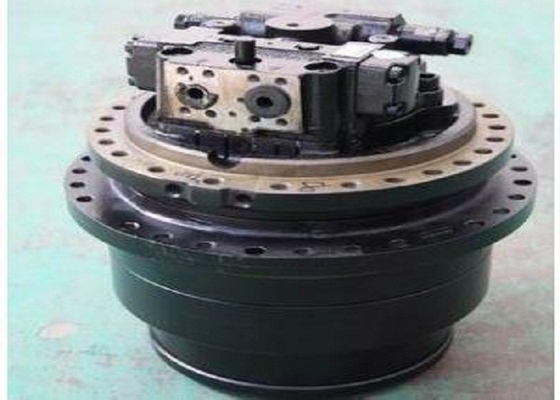

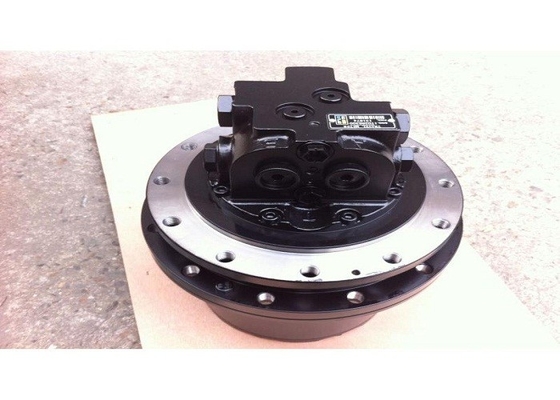

TM40VC Travel Final Drives For Excavators Doosan DH220-7 DH225-7 176 / 95 cc / rev Displacement

TM40VC Travel Final Drives For Excavators Doosan DH220-7 DH225-7 176 / 95 cc / rev Displacement
TM40VC Travel Final Drives For Excavators Doosan DH220-7 DH225-7 176 / 95 cc / rev Displacement TM40VC Travel Final Drives For Excavators Doosan DH220-7 DH225-7 176 / 95 cc / rev Displacement

Large Image :  TM40VC Travel Final Drives For Excavators Doosan DH220-7 DH225-7 176 / 95 cc / rev Displacement

Product Details:
Place of Origin: China
Brand Name: DH220-7 DH225-7
Model Number: TM40VC
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Wooden
Delivery Time: Within 3 working days after received your payment
Payment Terms: T/T, western Union, paypal or moneygram
Supply Ability: 10,000 unit per month
Detailed Product Description
Product Name: Final Drive Appliion: Excavator
Color: Red Black Type: With Gearbox
Weight: 308kgs Brand: Original
Feature: Genuine Motor Standard: 100% New
High Light:

final drives for excavators

,

final drive motor

TM40VC Final Drives For Excavators Doosan DH220-7 DH225-7 176 / 95 cc / rev Displacement​

Specifiions:

1, model: TM40VC
2, displacement (cc/rev): 176/95
3, working pressure(Mpa): 32.4
4, Brake Torque(kgf-m): 49.3
5, Gear Ratio(i): 48
6, output torque(Kgf-m): 4439/2404
7, output speed (rpm: 27/49
8, applicable machine: Doosan DH220-7 DH225-7
9, weight: 308kgs

Overall dimension:
TM40VC Travel Final Drives For Excavators Doosan DH220-7 DH225-7 176 / 95 cc / rev Displacement 0


item namemodelappliion machine model
travel motorMG26VPYC35,  Kubota 45/35/32, B32, B37-2, SK30, Sk32, SK35, IS35J/S, A5/TB30/TB35/TB39
travel motorTM07VCDH60-7, DH55, R60-7,
travel motorTM09VCDH80-7, DH80Gold, PC60-6/7, E70B, SH60, PC75, Kato 250, SK60, Yanmar75, YC85, LG906/907, R80
travel motorTM09VC-52/43-10
travel motorTM09VC-50/27-07PC78UU
travel motorTM18VCDH150, DH130
travel motorTM18V-68/43-02DH150, DH130, PC130-7, PC120-6, R135-7, R150-7, SK120, SH120, Kato450, Kato400, YC135, LG120,
travel motorTM22-77/45-01DH150, DH130, , R135-7, R150-7
travel motorTM22-77/45-02rotary drilling
travel motorTM40VCDH225-7, DH220-7, DH220-5, DH220-9, R260-7, R225-7, R220-5, R220-7, R210,R200,R225-9 EC210, SK210-8, Sk200-8
swing motorSM60DH60-7, DH55, R60-7,
swing motorSM220DH220-7, DH220-9, DH215-9, DH225-7, DH225-9, DH500
swing motorSM220Liugong220/225/922, R210(M2X150, R215-7(GMF151)



itemmachine modelitemmachine model
travel reducer/gearboxR200/ R210/ R220-5travel reducer/gearboxEX200-1
travel reducer/gearboxR215/R225-7, DH225-7travel reducer/gearboxEX200-5
travel reducer/gearboxDH258-7travel reducer/gearboxZAX200/210
travel reducer/gearboxR225-9, R210-7, SY215-7travel reducer/gearboxZAX200-3
travel reducer/gearboxDH215-9, DH225-9travel reducer/gearboxSK200/SK210-8, HD820-5
travel reducer/gearboxDH220-5, R260-5, LG200travel reducer/gearboxSK250-8
travel reducer/gearboxSK200-6Etravel reducer/gearboxDH300-7
travel reducer/gearboxPC200-6, PC220-6travel reducer/gearboxR305-7
travel reducer/gearboxPC120-6, PC100-6 PC110-7travel reducer/gearboxPC360-7, PC300-7
travel reducer/gearboxDH150, SY135-8travel reducer/gearboxDH370-7
travel reducer/gearboxPC120-5, PC100-5travel reducer/gearboxEC290B(old type)
travel reducer/gearboxSH265, E110Btravel reducer/gearboxPC60-7, PC78
travel reducer/gearboxEX100-1, EX120-1travel reducer/gearboxDH60
travel reducer/gearboxPC200-7travel reducer/gearboxR60-5, R60-7
travel reducer/gearboxSH200A3travel reducer/gearboxR80-7
travel reducer/gearboxSK230-6Etravel reducer/gearboxDH80-7
travel reducer/gearboxE320C, E318Ctravel reducer/gearboxZAX60-7
travel reducer/gearboxSH200A1, A2travel reducer/gearboxPC55/56



We could supply the following spare parts:
Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor,
swing machinery, swing motor, radiator and so on

Gear parts: reducer, gearbox, carrier box, shaft and so on

Engine parts: Piston, Liner, Piston ring, main bearing, connect rod bearing, water pump, turbocharger, crankshaft, camshaft, cylinder body, cylinder head, gasket head, gasket kit and so on.

Electric parts: throttle motor, solenoid valve, speed sensor, water temperature sensor, motor positioner, flameout solenoid valve and so on.

Undercarriage parts: track roller, carrier roller, sprocket, front idler, tack shoe, track link, tensioner spring and so on

Other parts: bucket, bushing, pin, seal kit, filter, cab and so on
